Description

The M.4s PCL dynamic uses a lightweight, low-profile rigid frame combined with an active posterior-to-anterior force mechanism. It features a patented hinge system that mimics natural knee movement while providing structural stability during conservative or post-operative rehabilitation.

Key Features:

• PCL Protection Pad actively exerts anterior force on the tibia to prevent posterior drawer or sag

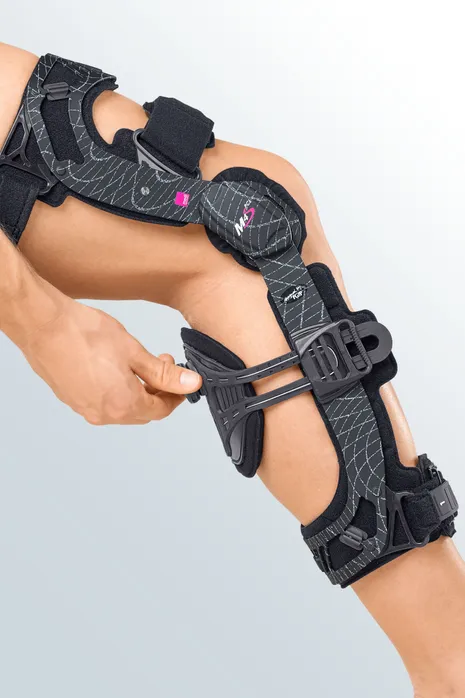

• Integrated Tensioning Dial allows precise and individualized adjustment of the protection pad
• Physioglide Hinge uses a patented polycentric design that mimics the natural roll-glide motion of the knee
• Pre-Shaped Tibia Pad features a winged cushion design that molds securely to the shin bone

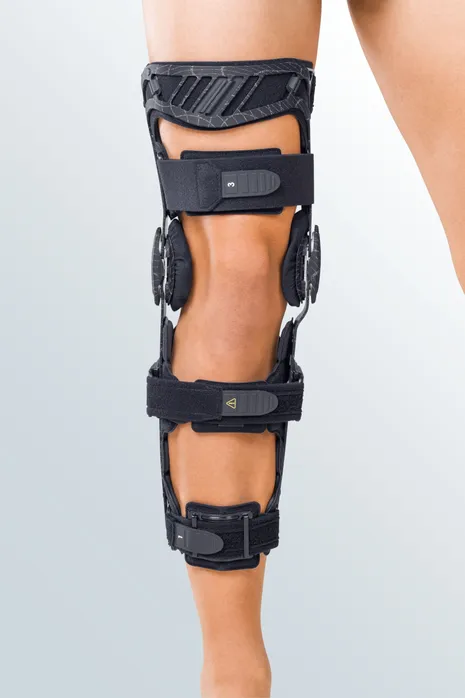

• Numbered Straps ensure a correct and consistent application sequence
• Wedge Set enables individualized limitation of flexion and extension

Indications:

• Conservative (non-surgical) treatment of posterior cruciate ligament (PCL) lesions
• Post-operative treatment after PCL reconstruction or repair
• Combined instabilities involving PCL ruptures

Specifications:

• Extension Limitation: 0°, 10°, 20°, 30°, 45°
• Flexion Limitation: 0°, 10°, 20°, 30°, 45°, 60°, 75°, 90°
• Immobilization Settings: 0°, 10°, 20°, 30°, 45°
• Frame Material: Lightweight aluminum / rigid composite
